PowerPaul® Cub Lite 12.8v 175Ah Lithium Battery

The PowerPaul® Cub Lite is perfect for systems needing high current but lower storage capacity, such as 4WDs, canopy systems, and small caravans. This compact battery can power a 3000W inverter at full load (250A continuous). It features CALB brand cells and a Heltec Hardware BMS for simplicity. Despite its compact size, similar to 100-135Ah batteries, it offers 175Ah of capacity.

Specifications:

• Rated Capacity: 175Ah
• Battery Management System (BMS): Heltec Hardware BMS

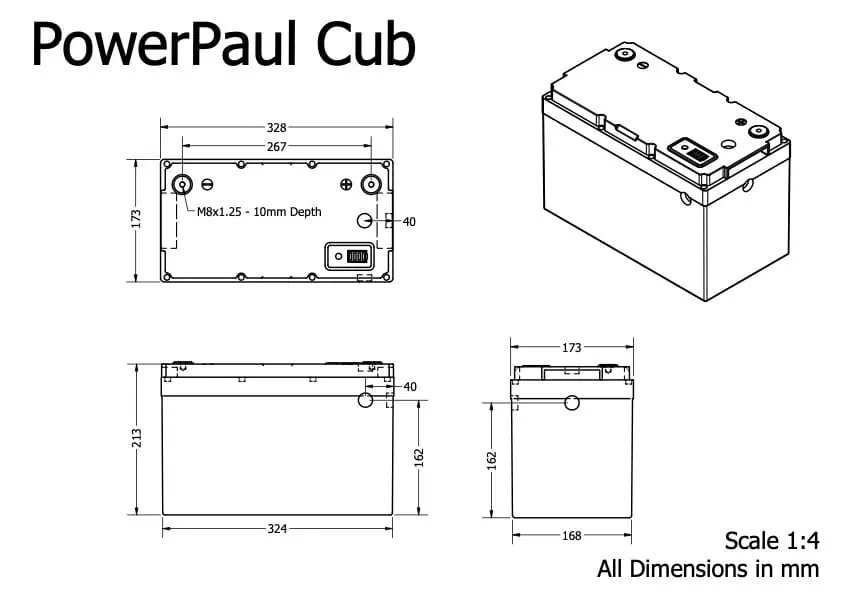

• Dimensions: 172mm (W) x 328mm (L) x 212mm (H)
• Weight: Approximately 15kg
• Nominal Voltage: 12.8V
• Cycle Life: Over 2000 cycles at 80% depth of discharge (expected lifespan of more than 10 years)
• BMS Current:
  • Continuous Discharge: 250A
  • Peak Discharge (1 sec): 800A
  • Continuous Charge: 125A
  • Peak Charge: 150A
  • Note: Direct alternator charging is not supported
• Overcurrent Protection: Not included
• Cell Balancing: 5A Active Balancer installed
• Battery Connections:
  • Parallel connection with identical batteries is allowed (ensure same voltage first)
  • Series connection is not allowed
• Warranty: 6-year warranty against manufacturing defects or failure
