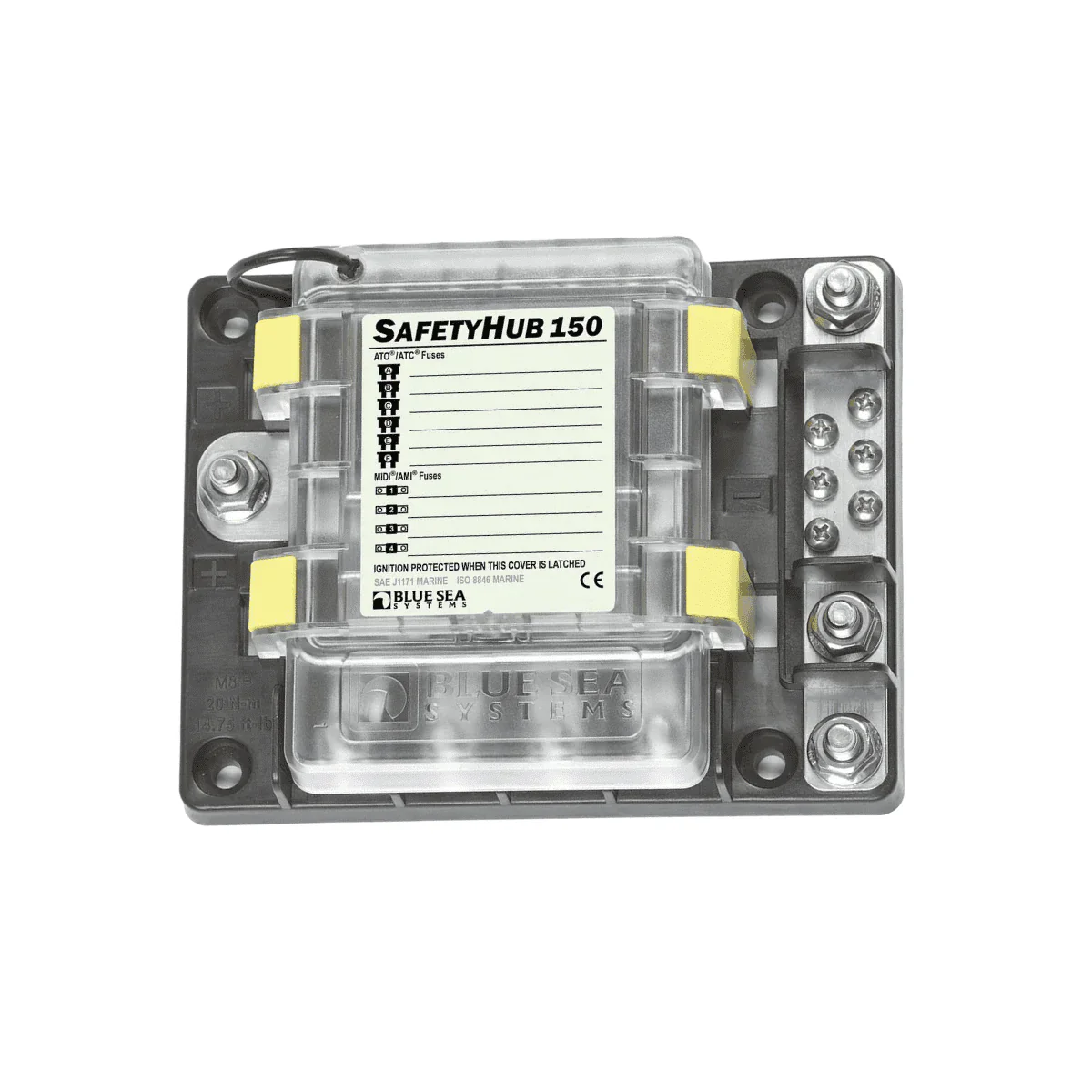

Blue Sea SafetyHub Fuse Block

Product Overview: Blue Sea Systems offers two models of the SafetyHub fuse blocks, designed for comprehensive circuit protection. Both models accept MIDI/AMI and ATC/blade fuses, feature circuit identification labels, and are ignition protected, making them safe for use on gasoline-powered vessels. Please note that fuses are sold separately.

SafetyHub 150 Features:

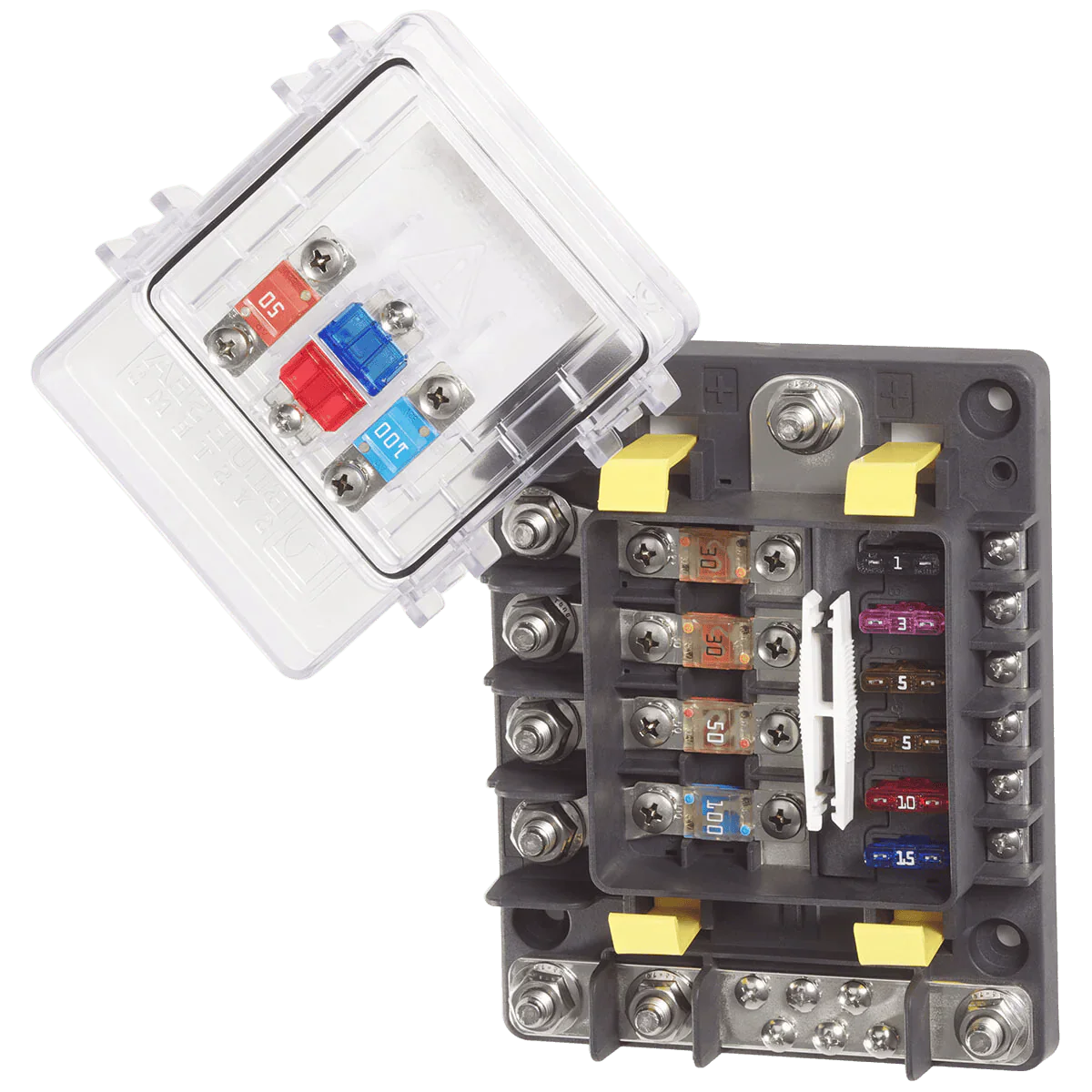

Fuse Compatibility: Fits four 30A-200A MIDI/AMI fuses and six 1A-30A ATC/blade fuses.
Integrated Fuse Puller: Easily remove ATC/blade fuses.
Cover Storage: Space for two spare ATC/blade fuses.

Detailed Description:

Ignition Protected: Safe for use on gasoline-powered boats with screw termination.
High-Amp Circuits: Accepts four AMI® or MIDI® fuses for circuits up to 200A.
Medium-Amp Circuits: Accepts six ATO® or ATC® fuses for circuits up to 30A, including bilge pumps, electronics, and lights.
Sealed Cover: Protects fuses from harsh marine environments and meets ABYC/USCG insulation requirements.
Negative Bus: Provides a common location for negative connections.
Circuit Identification: Write-on labels for easy identification.
Spare Fuse Storage: Cover stores two spare ATO® or ATC® and two spare AMI® or MIDI® fuses, along with mounting screws.
Secure Connections: One-piece stainless flange nuts ensure safe and secure connections.

Specifications:

Circuits: 10
Stud Size: M8 x 1.25
Operating Voltage: 12V, 24V, 32V
Maximum Operating Amperage:
- 200A using 2/0 cable at 50°C maximum ambient temperature
- 350A using 4/0 cable at 50°C maximum ambient temperature
- 600A using 2 x 4/0 cable at 50°C maximum ambient temperature
Recommended Ring Terminal: M8 (5/16")
Screw Torque:
- 8-32: 18 in-lb (2.03 Nm)
- M5: 27 in-lb (3.05 Nm)
Stud Torque: 180 in-lb (20.34 Nm)
Weight: 3.50 lb (1.59 kg)

The SafetyHub 150 consolidates ignition-protected, high-amperage, and 24-hour circuit protection into one location near the battery. It also provides circuit protection for the 360 Panel feed wire, minimising panel space and ensuring all high-amperage cables are protected.
